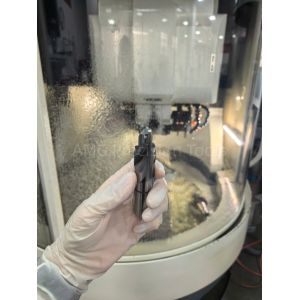

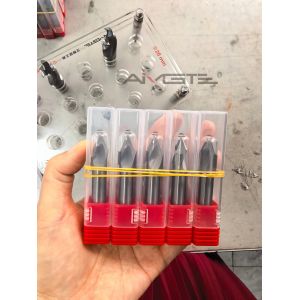

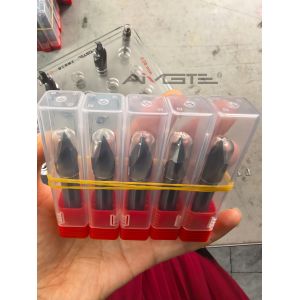

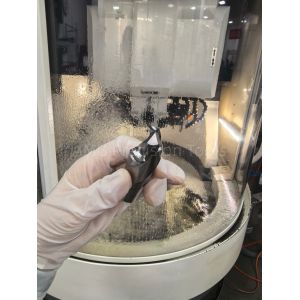

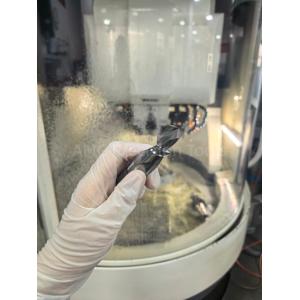

Custom Welded Profile Tools for Complex Shape Milling

Ask Latest Price

Video Channel

Brand Name :AMG

Model Number :Welded Forming Tool

Certification :ISO9001

Place of Origin :China

MOQ :1pc

Payment Terms :T/T,Western Union

Delivery Time :5-8 work days

Material :Carbide,Tungsten Cobalt Alloy,42CrMo,tungsten steel,High Speed Steel

Coating :AlTiN,TiAIN,AlTiN/TiAlN,No,Other

Diameter :1-20mm,0.3-20mm,50~315mm,0.3-6 mm,0.2-0.9mm

Overall length :50-150mm,38.1mm,38mm to 100mm,33mm,1-1/2

Flute :2/3/4 Flutes,4 Flutes,2flute,2 Flutes,3 Flutes

Suitable for :Carbon Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel,Wood,Cast Iron,Amber

Hrc :from 35 to 65 HRC,45/55/60/65 Degrees,20~65,55,45

Precision :High Precision,0.005-0.01mm

Usage :General High Speed Cutting,engraving,milling,Metal Machining,etc

Processing type :Metal,Metal Cutting Tools,end mill,Casting

Machine type :Milling Maching,Five-axis grinding machine- Anca,Walter from German,Cutting Maching

Controlling mode :CNC Tooling System,CNC System,CNC

Application :CNC Process,for profile machining,for slot machining,stainless steel,for cavity machining

Transport :Air,TNT,DHL,EMS,Express

Color :Silver,Blue,black.,Bronze,red

Oem :OEM is Hot Welcome,Offered,Accept

Contact Now

Add to Cart

View Product Description

Definition

A Welded Forming Tool is a custom-shaped tool in which the carbide tip (cutting edge) is welded to a tool holder. It is designed to create specific contours, radii, or profiles on a workpiece during machining.

Structure

Tool body: High-strength alloy steel for rigidity.
Cutting edge: Tungsten carbide, brazed or welded onto the body.
Forming shape: Designed according to customer’s drawing or part geometry.

Main Features

Customizable profiles for special contour machining
Strong weld joint for stable cutting
High hardness and wear resistance
More cost-effective than solid carbide tools for large shapes

Applications

Mold and die manufacturing
Automotive part machining
Aerospace component shaping
Precision metal forming or profiling

Common Specifications

Item	Specification Details
Tool Type	Welded Forming Cutter / Profile Tool
Material	Tungsten Carbide Tip + Alloy Steel Shank
Cutting Diameter (D)	3 mm – 25 mm (customizable)
Shank Diameter (d)	4 mm – 25 mm
Overall Length (L)	50 mm – 150 mm
Forming Shape	According to customer drawing or sample
Weld Type	Brazed or Laser Welded
Coating Options	TiN, TiAlN, AlTiN, TiSiN, nACo, etc.
Hardness (HRA)	91–93 HRA (Carbide tip)
Tolerance	±0.01 mm or customized
Application	Mold & die machining, contour milling, precision forming
